Author Topic: Changing a turn signal bulb  (Read 9053 times, 20 Replies)
Ottawan
Jr. Member
**
Offline Offline

Posts: 19
Joined: May 2010




Ignore
« on: January 15, 2012, 07:09:38 PM »

Hi Gang

hoping someone can help me with this. My left rear turn signal / brake light is out. Not too impressed with that on an 18 month old vehicle. I read the manual and I think I misunderstood it. Can you change this on your own ? Anyone done it?

Ottawan
Logged
GoldEnclave
Global Moderator
Enclave NIRVANA
*****
Offline Offline

Posts: 17117
Location: NJ
Joined: Feb 2008



« Reply #1 on: January 15, 2012, 07:22:11 PM »

You might find the information that you need in this thread:

 http://www.enclaveforum.net/index.php?topic=1255.0
Logged

2008 Gold Mist Enclave CX AWD, Cashmere Cloth, Driver's Confidence Package, 8 passenger seating
amaze11
Full Member
***
Offline Offline

Posts: 150
Location: Atlantic Canada
Joined: May 2011





Ignore
« Reply #2 on: January 16, 2012, 09:27:12 AM »

When mine went out a couple of months ago I took it to the dealer.  I actually had to leave it there as they said it takes a bit of time.  In any event, it was covered by warranty, so I'd just take it to your dealer and get them to do it for you.
Logged

2008 Enclave CXL2 AWD - Cocoa Metallic/Cashmere leather, DVD, Nav, Sunroof, Towing Pkg
2010 Honda Ridgeline AWD
sklunk
Sr. Member
****
Offline Offline

Posts: 456
Location: Southcentral PA
Joined: Mar 2011





Ignore
« Reply #3 on: January 16, 2012, 01:39:46 PM »

There is also some info here:

http://www.justanswer.com/buick/38mv8-replace-buick-enclave-taillight-tailga.html
Logged

2009 CXL, White Diamond Tricoat, Cashmere, with absolutely everything except AWD, "re"-contented with some 2008 features ...
firebird
Sr. Member
****
Offline Offline

Posts: 315
Location: Illinois
Joined: Jul 2007





Ignore
« Reply #4 on: January 16, 2012, 08:00:38 PM »

sklunk.....I just replaced mine yesterday using the same instructions as your posted link. Pretty simple job & should only take a few minutes. By the way the bulb is a 7443 if you want to get one before you remove the assembly. At O'Rielys they come in a package of two..
Logged

2008 CXL FWD Sunroof 19" chrome wheels Platinum/Titanium
franko
Full Member
***
Offline Offline

Posts: 191
Location: CT
Joined: Dec 2008




Ignore
« Reply #5 on: January 16, 2012, 08:18:38 PM »

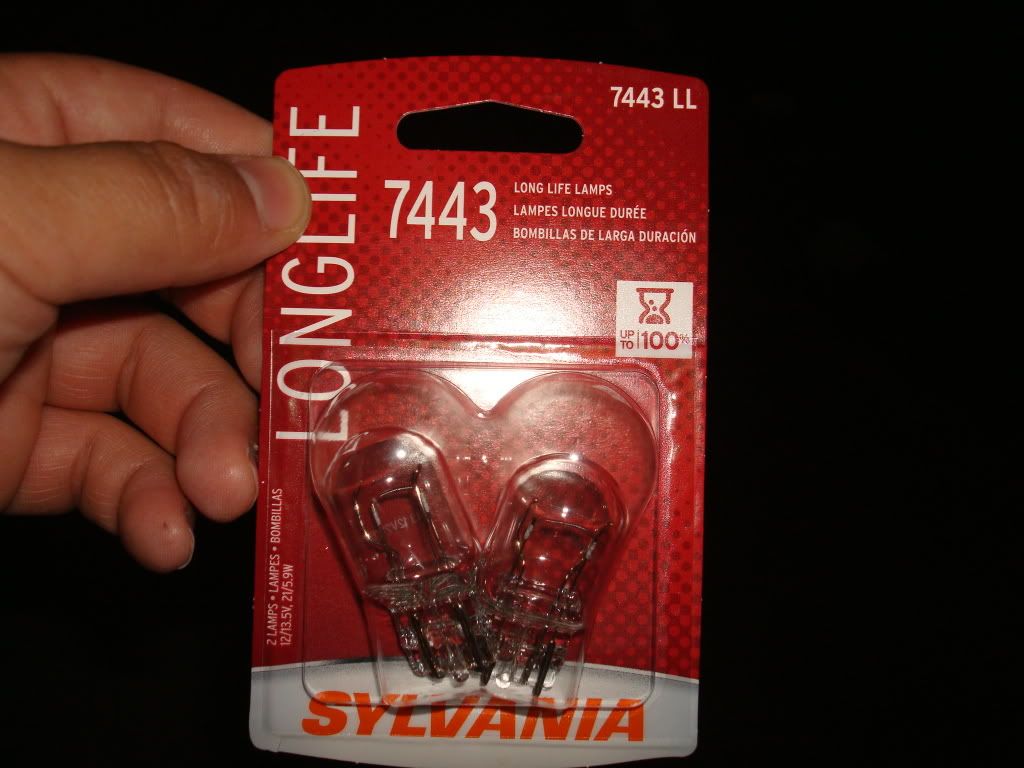

I agree.  I used info from the forum to change a turn/brake light last week. I bought the 7443 bulb first -- it's the one with two filaments and two wattage ratings.  Someone said he used a 7mm hex driver to remove the two bolts, but I used a 9/16 socket.  Having the bulb and tools handy made it a 5 minute job.
Logged

Traded -- 2009 CXL AWD Cocoa with Cashmere
New -- 2014 Acadia Quicksilver w Ebony
Buick Customer Service
Enclave Freak
******
Offline Offline

Posts: 1367
Joined: Jul 2010



WWW

Ignore
« Reply #6 on: January 17, 2012, 09:22:39 AM »

Hi Gang

hoping someone can help me with this. My left rear turn signal / brake light is out. Not too impressed with that on an 18 month old vehicle. I read the manual and I think I misunderstood it. Can you change this on your own ? Anyone done it?

Ottawan

Ottawan,
You are able to do this yourself with the bulb that the other members have stated the 7443. You are also able to take it into your dealership and it would be covered under your warranty. If you do have any further questions please feel free to message me.
Thank you,
Stacy Buick Customer Service
Logged

~Buick Customer Service

my.buick.com
stars200
Jr. Member
**
Offline Offline

Posts: 49
Location: McKinney TX
Joined: Mar 2009





Ignore
« Reply #7 on: January 17, 2012, 10:59:28 AM »

Had to change the bulb in mine a couple of months ago.   It was the rear passenger side.   I have a 2009 and the manual gave the incorrect bulb number however the instructions were correct.  This instructions show a bulb of 3157 on page 5-35.  After purchasing had to go back and have them look it up.

Logged

2009  Cocoa Brown  Enclave CXL  with all the options.
vabene7
Newbie
*
Offline Offline

Posts: 7
Location: New Jersey, USA
Joined: Sep 2011




Ignore
« Reply #8 on: January 30, 2012, 11:29:17 PM »

Ottawan,
You are able to do this yourself with the bulb that the other members have stated the 7443. You are also able to take it into your dealership and it would be covered under your warranty. If you do have any further questions please feel free to message me.
Thank you,
Stacy Buick Customer Service


I thought bulb replacement is not covered under warranty.....?
Logged

2008 Buick Enclave
2008 Chevy Malibu
2005 Mercedes S600 V12TT
rpasetto
Enclave Freak
******
Offline Offline

Posts: 1874
Joined: Jun 2008




Ignore
« Reply #9 on: January 31, 2012, 10:51:12 AM »

Getting to the body-mounted part of the taillight housing is relatively easy... 2 or 3 machine screws if I recall.  Getting to te tailgate mounted part looks puzzling  Huh?  special tools and popping those inner liner clips?  Bulb changing should be something easy for the average owner.
Logged

.. RP
08 Enclave Cocoa/Cashmere, Sunroof, Nav, Driver Conf.
....................................
“The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge.”
― Stephen Hawking
rbarrios
Enclave Guru
*******
Offline Offline

Posts: 3998
Joined: Sep 2009




Ignore
« Reply #10 on: January 31, 2012, 11:49:32 AM »

funny-- post- on the way home- my blinker was normal for 3 flashes- then went to hyper mode- flashing very quickly.
I knew what that meant.
I changed it out.
Pretty easy.... Im guessing the process is pretty similar to the Traverse.

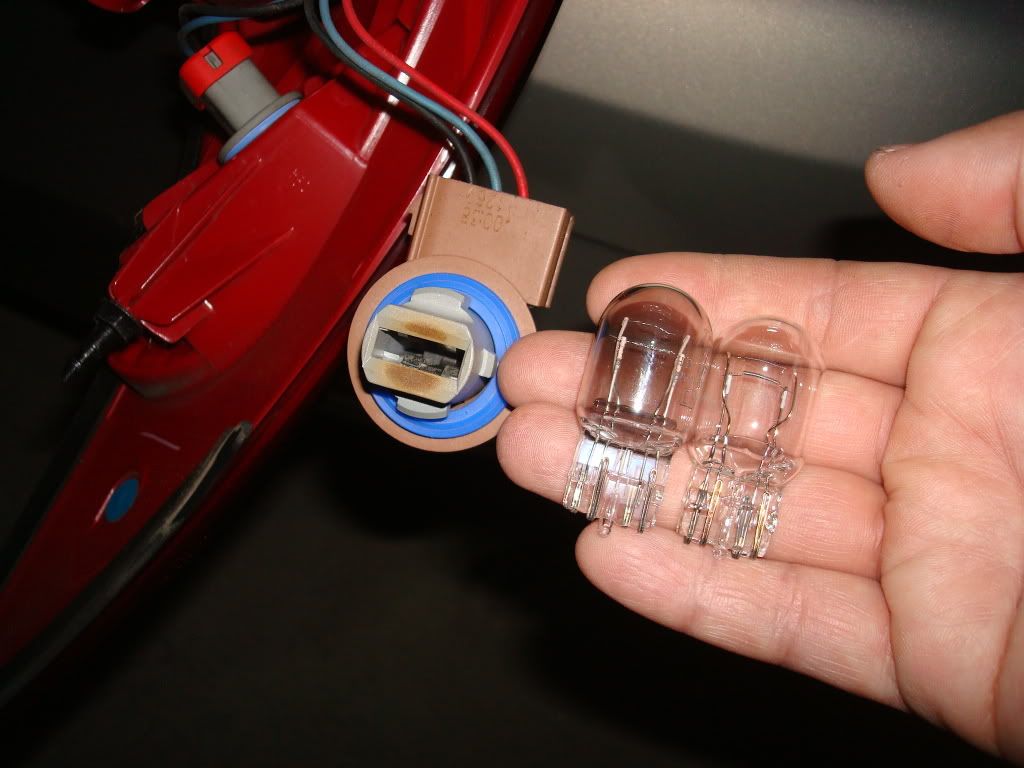

Some pics....



9/32 socket.



Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    23,000
2010 Traverse 3.6L-   80,000
2003 Trailblazer 4.2L-173,000
rpasetto
Enclave Freak
******
Offline Offline

Posts: 1874
Joined: Jun 2008




Ignore
« Reply #11 on: January 31, 2012, 01:27:28 PM »

By the way, hss anyone tried LED bulbs here?  (Sorry for drifting 'off topic' on this but I think it's at least partially relevant since some bulb changing can be a real pain.)
Logged

.. RP
08 Enclave Cocoa/Cashmere, Sunroof, Nav, Driver Conf.
....................................
“The greatest enemy of knowledge is not ignorance, it is the illusion of knowledge.”
― Stephen Hawking
sklunk
Sr. Member
****
Offline Offline

Posts: 456
Location: Southcentral PA
Joined: Mar 2011





Ignore
« Reply #12 on: January 31, 2012, 01:40:14 PM »

By the way, hss anyone tried LED bulbs here?  (Sorry for drifting 'off topic' on this but I think it's at least partially relevant since some bulb changing can be a real pain.)

It was discussed in some other threads but I don't think anyone has tried it yet.  I would LOVE to try it but can't see spending a couple hundred dollars on bulbs (I would want to do the stop/brake lights, reverse lights, and front signals as well).

If anyone would like to pay for the bulbs and have them shipped to me I would gladly use my vehicle as a guinea pig and document the whole process  Grin ...
Logged

2009 CXL, White Diamond Tricoat, Cashmere, with absolutely everything except AWD, "re"-contented with some 2008 features ...
GoldEnclave
Global Moderator
Enclave NIRVANA
*****
Offline Offline

Posts: 17117
Location: NJ
Joined: Feb 2008



« Reply #13 on: January 31, 2012, 11:54:28 PM »

funny-- post- on the way home- my blinker was normal for 3 flashes- then went to hyper mode- flashing very quickly.
I knew what that meant.
I changed it out.
Pretty easy.... Im guessing the process is pretty similar to the Traverse.
Some pics....



9/32 socket.





Yet another terrific instructional post! You really should considering publishing instruction manuals for a living (if you don't already do that). thumbs up
Logged

2008 Gold Mist Enclave CX AWD, Cashmere Cloth, Driver's Confidence Package, 8 passenger seating
Sailfish
Enclave GOD!
********
Offline Offline

Posts: 9574
Location: SW Ohio
Joined: Aug 2010


Volunteer with Sheltie rescue organizations




Ignore
« Reply #14 on: February 01, 2012, 05:50:35 AM »

I thought bulb replacement is not covered under warranty.....?

I had a headlight on the 07 Outlook out and they changed it without charge.  Although perhaps because the bulb was broken inside the assembly and well how in the heck did that happen?

Yet another terrific instructional post! You really should considering publishing instruction manuals for a living (if you don't already do that). thumbs up

Yep rbarrios just rocks on giving us so much great how to information plus photographs!
Logged

11 Enclave CXL2 WDT FWD 20" Wheels build 11/10 purchase 2/11
05 Nissan 350Z convertible - husband's
03 Saturn VUE V6 AWD - was my Mother carry around vehicle

The difference between stupidity and genius is that genius has its limits.

Albert Einstein
rbarrios
Enclave Guru
*******
Offline Offline

Posts: 3998
Joined: Sep 2009




Ignore
« Reply #15 on: February 01, 2012, 11:44:03 AM »

thanks...
so the E's tailights/screws are the same- or pretty much the same?

(On the Traverse forum I did a HOW TO)... on here I just posted the pics.
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    23,000
2010 Traverse 3.6L-   80,000
2003 Trailblazer 4.2L-173,000
vic1212
Hero Member
*****
Offline Offline

Posts: 909
Joined: Jul 2009




Ignore
« Reply #16 on: February 01, 2012, 07:57:40 PM »

wait but then I want to know is it difficult to change the turning signals on the front of the car for the lambda triplets because I notice that the traverse is placed on the bumper and I know that changing those bulbs on the first gen SRX is a big pain in the a**
Logged
rbarrios
Enclave Guru
*******
Offline Offline

Posts: 3998
Joined: Sep 2009




Ignore
« Reply #17 on: February 01, 2012, 09:36:28 PM »

easy to get to. (I can change my headlamp bulbs in about 15min total for both)..
the turn signals- probably in half the time.

But its about 4 screws \
2 at the bottom.

2 for part of the liner- note the sideways view...

and pull back liner..

and I see this...
(I stuck the camera in the opening- but when you turn the wheel you have a little more access.. Enough to stick your hand in there and turn reach the bulbs)
pass side


drivers side

« Last Edit: February 01, 2012, 09:41:27 PM by rbarrios » Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    23,000
2010 Traverse 3.6L-   80,000
2003 Trailblazer 4.2L-173,000
vic1212
Hero Member
*****
Offline Offline

Posts: 909
Joined: Jul 2009




Ignore
« Reply #18 on: February 02, 2012, 07:05:29 PM »

easy to get to. (I can change my headlamp bulbs in about 15min total for both)..
the turn signals- probably in half the time.

But its about 4 screws \
2 at the bottom.

2 for part of the liner- note the sideways view...

and pull back liner..

and I see this...
(I stuck the camera in the opening- but when you turn the wheel you have a little more access.. Enough to stick your hand in there and turn reach the bulbs)
pass side


drivers side



are there screws on the front too??
Logged
rbarrios
Enclave Guru
*******
Offline Offline

Posts: 3998
Joined: Sep 2009




Ignore
« Reply #19 on: February 02, 2012, 11:54:31 PM »

only 4 screws.
2 on bottom (by the air dam) and 2 on the wheel well that I removed to have enough access to inside the liner
Logged

2010 FWD LT1-Gold Mist Metallic- seats 8.
Build Date- July 31, 2009-2nd day of Spring Hill 2010 production.
2013 Equinox 3.6L -    23,000
2010 Traverse 3.6L-   80,000
2003 Trailblazer 4.2L-173,000
